TexSpot: 3D Texture Enhancement with Spatially-uniform Point Latent Representation

SIGGRAPH Asia 2026
1SSE, CUHKSZ 2ByteDance Games 3FNii-Shenzhen 4Zhejiang University 5Shenzhen University 6GenuX
*Equal contribution   †Part of project lead   ‡Corresponding author

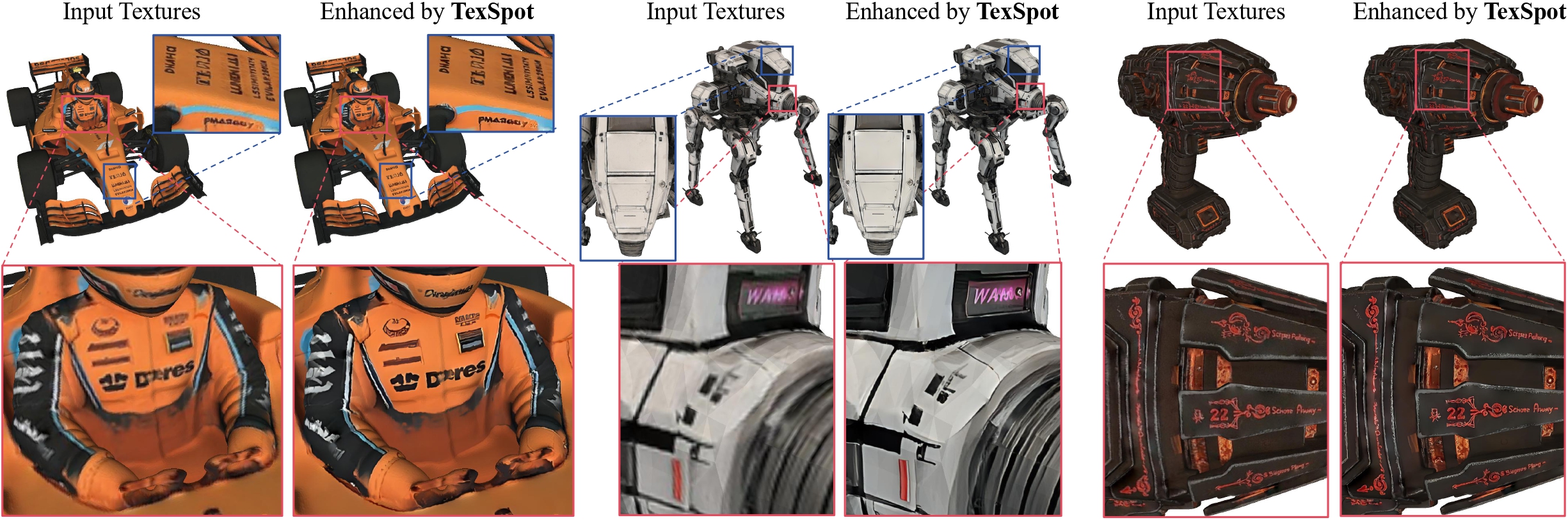

TexSpot teaser: input textured models and their enhanced results with zoomed-in details

Given an input 3D textured model, TexSpot effectively enhances the overall texture quality, producing visually plausible and high-fidelity textured results.

Abstract

High-quality 3D texture generation remains a fundamental challenge due to the view-inconsistency inherent in current mainstream multi-view diffusion pipelines. Existing representations either rely on UV maps, which suffer from distortion during unwrapping, or point-based methods, which tightly couple texture fidelity to geometric density that limits high-resolution texture generation. To address these limitations, we introduce TexSpot, a diffusion-based texture enhancement framework. At its core is Texlet, a novel 3D texture representation that merges the geometric expressiveness of point-based 3D textures with the compactness of UV-based representation. Each Texlet latent vector encodes a local texture patch via a 2D encoder and is further aggregated using a 3D encoder to incorporate global shape context. A cascaded 3D-to-2D decoder reconstructs high-quality texture patches, enabling the Texlet space learning. Leveraging this representation, we train a diffusion transformer conditioned on Texlets to refine and enhance textures produced by multi-view diffusion methods. Extensive experiments demonstrate that TexSpot significantly improves visual fidelity, geometric consistency, and robustness over existing state-of-the-art 3D texture generation and enhancement approaches.

Video Presentation

Methodology

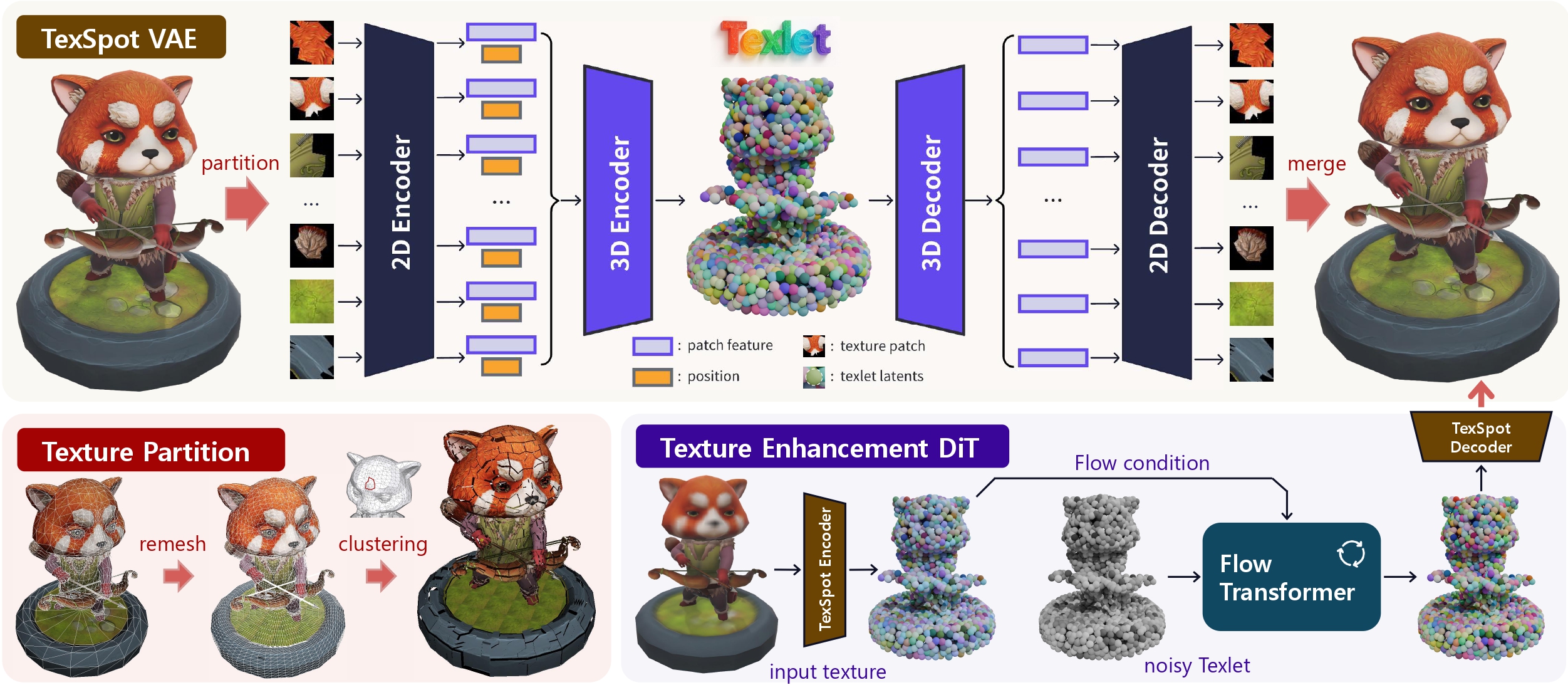

TexSpot pipeline: texture partition, Texlet VAE, and texture enhancement DiT

TexSpot Pipeline: The pipeline overview of TexSpot. It consists of (i) a texture patch partitioning that divides the surface texture into spatially-uniform small patches; (ii) a TexSpot VAE with a two-stage local-global architecture that represents all texture patches into a compact 3D latent space; and (iii) a conditional TexSpot DiT based on flow matching for texture enhancement.

BibTeX

@inproceedings{lu2026texspot,
  title     = {TexSpot: 3D Texture Enhancement with Spatially-uniform Point Latent Representation},
  author    = {Lu, Ziteng and Wu, Yushuang and Ye, Chongjie and Qiu, Yuda and Shao, Jing and Guo, Xiaoyang and Zhou, Jiaqing and Hu, Tianlei and Zhou, Kun and Han, Xiaoguang},
  booktitle = {SIGGRAPH Asia 2026 Conference Papers (SA Conference Papers '26)},
  year      = {2026},
  location  = {Kuala Lumpur, Malaysia},
  publisher = {Association for Computing Machinery},
  address   = {New York, NY, USA},
  isbn      = {979-8-4007-2842-6},
  doi       = {10.1145/3829340.3842181},
  url       = {https://doi.org/10.1145/3829340.3842181}
}
